Detectors, SATEL Security Solutions

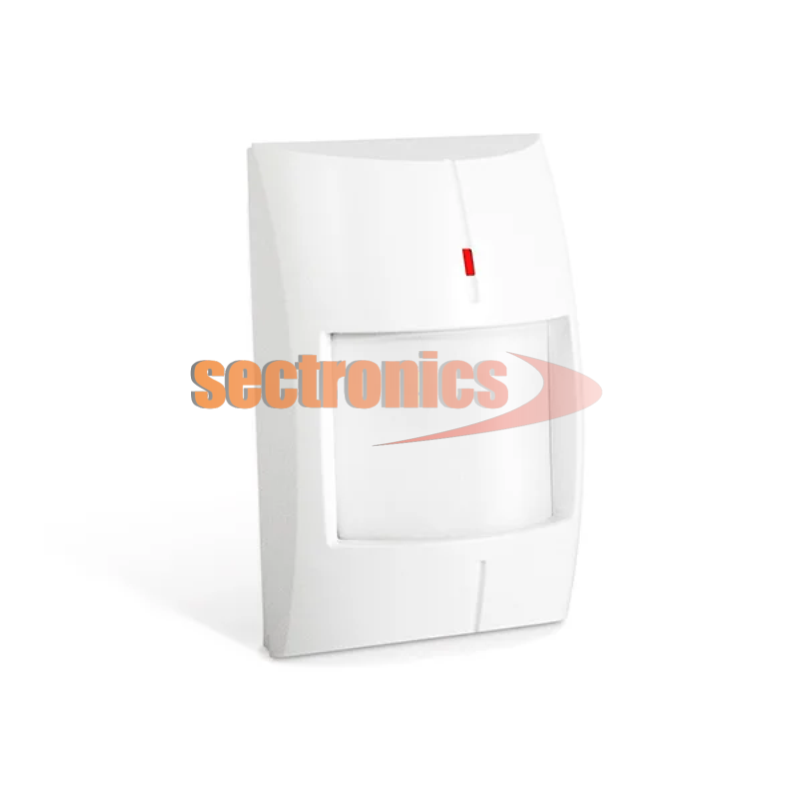

TOPAZ Compact Digital Motion Detector
MPN: TOPAZ
If in stock, ship in 1-2 days
7.60 € excl. VAT
TOPAZ Compact Digital Motion Detector
Features:
| Supply voltage | 12 V DC |
| Detected target velocity | 0,3…3 m/s |
| Operating temperature range | -10…+55 °C |
| Recommended mounting height | 2,1 m |
| Standby mode current consumption | 8 mA |
| Max. current consumption | 8,5 mA |
| Weight | 45 g |
| Relay contacts rated load (resistive) | 40 mA / 16 V DC |
| Maximum humidity | 93±3% |
| Dimensions | 52 x 81 x 33 mm |
| Environmental class according to EN50130-5 | II |
| Alarm signaling time | 2 s |
| EOL resistors | 2 x 1,1 kΩ |
| Warm-up period | 120 s |
For more information: TOPAZ
