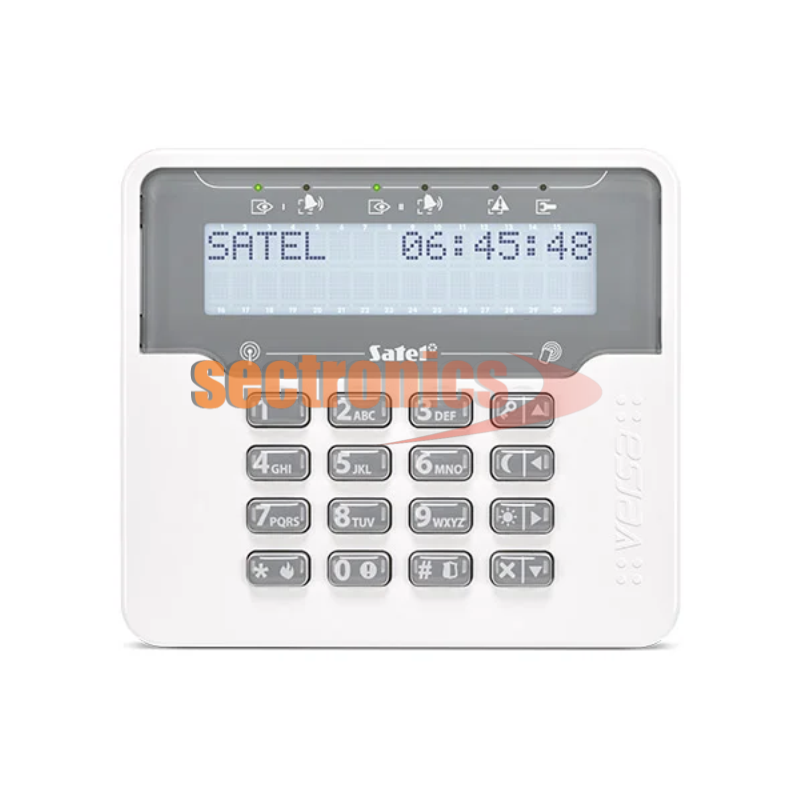

VERSA-KWRL2 Wireless LCD Keypad
MPN: VERSA-KWRL2
If in stock, ship in 1-2 days
80.75 € excl. VAT
VERSA-KWRL2 Wireless LCD keypad for VERSA control panels
Features:
| Enclosure dimensions | 139 x 124 x 22 mm |
| Operating temperature range | -10°C…+55°C |
| Weight | 280 g |
| Maximum humidity | 93±3% |
| Operating frequency band | 868,0 ÷ 868,6 MHz |
| Battery | 2 x CR123A 3V |
| Environmental class according to EN50130-5 | II |
| Maximum current consumption, BT1 battery | 30 mA |
| Maximum current consumption, BT2 battery (card reader disabled) | 30 mA |
| Maximum current consumption, BT2 battery (card reader enabled) | 30 mA |
| Radio communication range (in open area) for ACU-120 | up to 800 m |
| Radio communication range (in open area) for ACU-270 | up to 400 m |
| Radio communication range (in open area) for ACU-220 | up to 800 m |
| Radio communication range (in open area) for ACU-280 | up to 800 m |
| Power consumption in standby mode from BT1 battery | 5 µA |
| Power consumption in standby mode from BT2 battery | 1 µA |
For more information: VERSA-KWRL2
