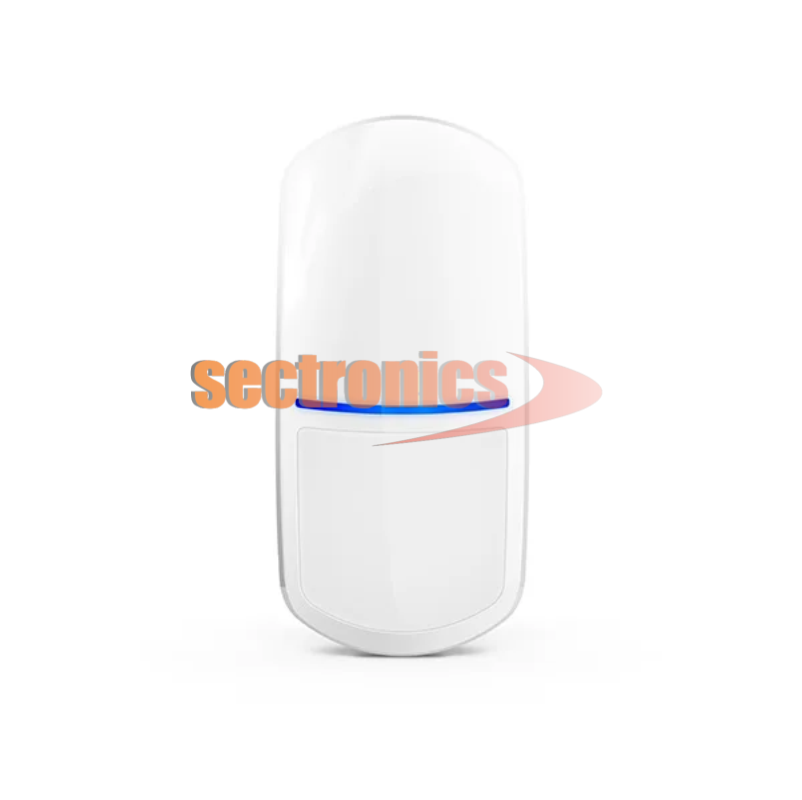

SLIM-PIR-PET PIR Motion Detector With Pet Immunity Up to 20 kg
MPN: SLIM-PIR-PET
If in stock, ship in 1-2 days
13.30 € excl. VAT
SLIM-PIR-PET PIR Motion Detector With Pet Immunity Up to 20 kg
Features:
| Environmental class according to EN50130-5 | II |
| Relay contact resistance (alarm output) | 26 Ω |
| Tamper outputs (NC) | 100 mA / 30 V DC |
| Alarm outputs (NC relay, resistive load) | 40 mA / 24 V DC |
| Detection area | 12 m x 13 m, 90° |
| Security grade according to EN50131-2-2 | Grade 2 |
| Warm-up period | 30 s |
| EOL resistors | 2 x 1,1 kΩ |
| Complied with standards | EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5 |
| Alarm signaling time | 2 s |
| Supply voltage | 12 V DC |
| Dimensions | 62 x 137 x 42 mm |
| Maximum humidity | 93±3% |
| Weight | 100 g |
| Max. current consumption | 23 mA |
| Standby mode current consumption | 8 mA |
| Recommended mounting height | 2,4 m |
| Operating temperature range | -10°C…+55°C |
| Detected target velocity | 0,3…3 m/s |
For more information: SLIM-PIR-PET
