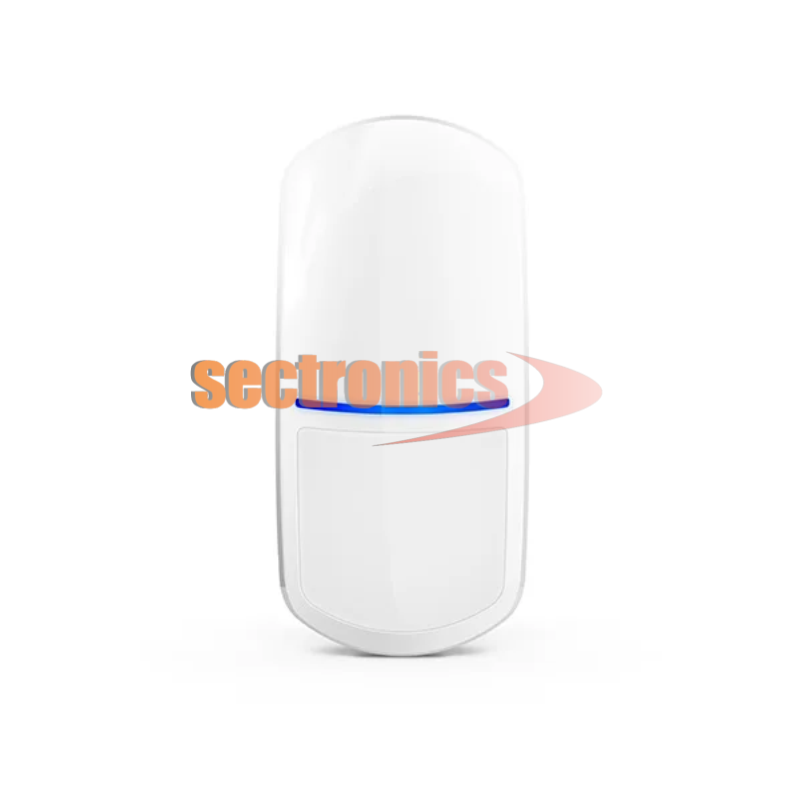

SLIM-DUAL-PRO Dual-tech PIR+MW Motion Detector With IR Anti-Masking Function

Features:

• Supply voltage
  12 V DC
• Detected target velocity
  0,2…3 m/s
• Operating temperature range
  -10°C…+55°C
• Recommended mounting height
  2,4 m
• Max. current consumption
  85 mA
• Weight
  144 g
• Maximum humidity
  93±3%
• Dimensions
  62 x 137 x 42 mm
• Environmental class according to EN50130-5
  II
• Alarm signaling time
  2 s
• Complied with standards
  EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
• Microwave frequency
  24,125 GHz
• Security grade according to EN50131-2-4
  Grade 3
• EOL resistors
  2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ
• Warm-up period
  30 s
• Detection area
  20 m x 24 m, 90°
• Alarm outputs (NC relay, resistive load)
  40 mA / 24 V DC
• Tamper outputs (NC relay, resistive load)
  40 mA / 24 V DC
• Anti-masking outputs (NC relay, resistive load)
  40 mA / 24 V DC
• Relay contact resistance (alarm output)
  26 Ω
• Permissible installation height
  up to 4 m
• Relay contact resistance (tamper output)
  26 Ω
• Relay contact resistance (anti-masking output)
  26 Ω
