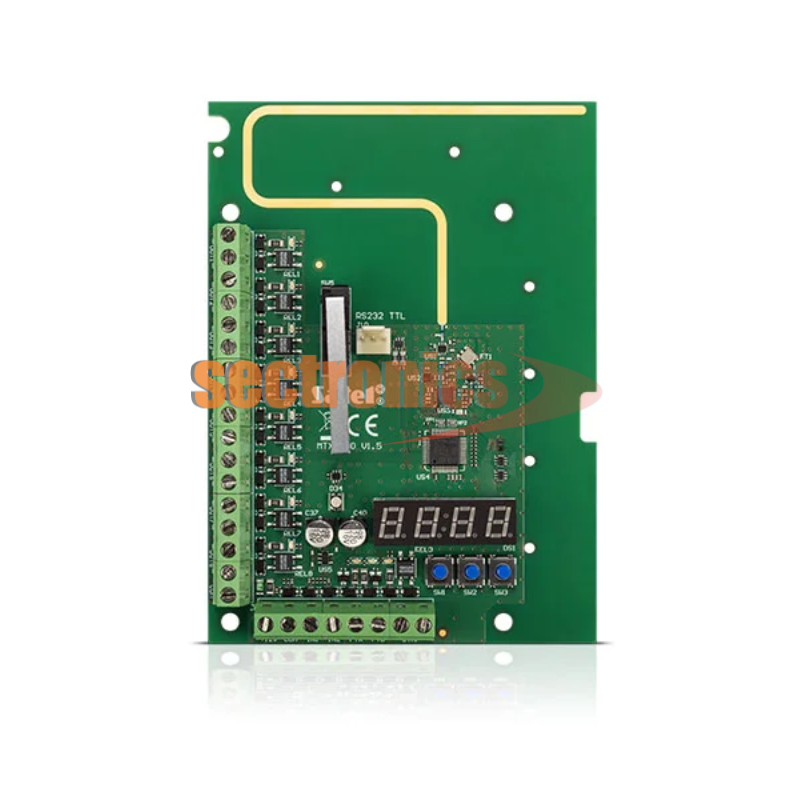

MTX-300 433 MHz Wireless System Controller
MPN: MTX-300
If in stock, ship in 1-2 days
67.45 € excl. VAT
MTX-300 433 MHz Wireless System Controller
Features:
| Supply voltage | 12 V DC |
| Enclosure dimensions | 126 x 158 x 32 mm |
| Operating temperature range | -10°C…+55°C |
| Standby mode current consumption | 65 mA |
| Max. current consumption | 70 mA |
| Weight | 210 g |
| Maximum humidity | 93±3% |
| Operating frequency band | 433,05 ÷ 434,79 MHz |
| Radio communication range (in open area) | w zależności od urządzenia m |
| Environmental class according to EN50130-5 | II |
| OC outputs rating | 50 mA / 12 V DC |
| Relay outputs rating (resistive load) | 60 mA / 30 V DC |
For more information: MTX-300
