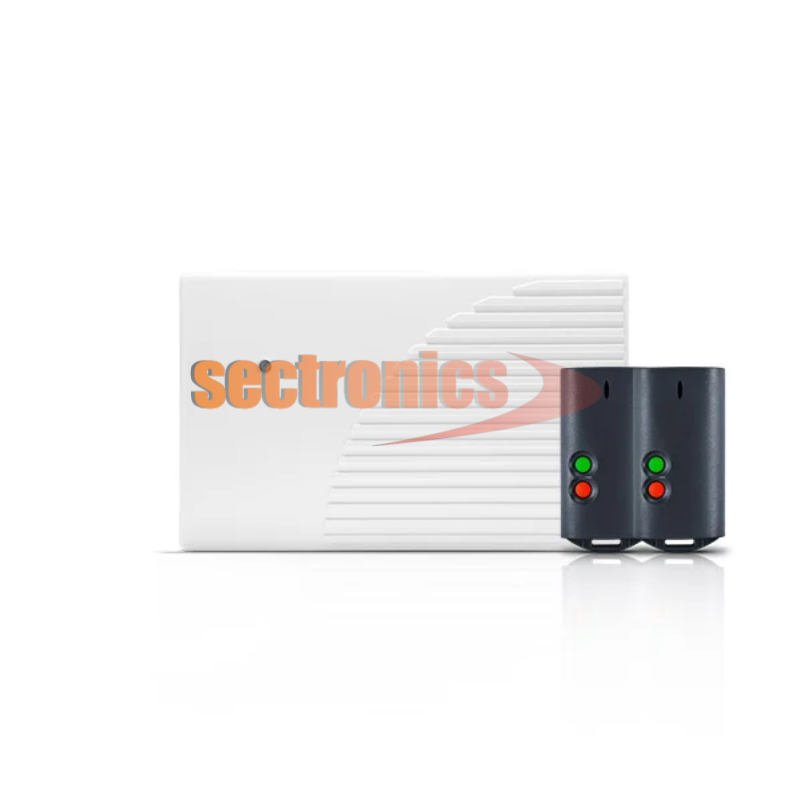

RK-2K 2-Channel Radio Controller

Features:

• Operating temperature range
  -10°C…+55°C
• Weight
  81 g
• Maximum humidity
  93 ± 3 %
• Operating frequency band
  433,05 ÷ 434,79 MHz
• Dimensions
  118 x 72 x 24 mm
• Supply voltage (±10%) [V AC]
  24 V AC
• Relay output
  1 A / 24 V DC/AC
• LV output
  50 mA / 24 V DC/AC
• SS output
  500 mA / 24 V DC/AC
• Standby mode current consumption (supply 12 V DC)
  18 mA
• Standby mode current consumption (supply 24 V DC)
  32 mA
• Max. current consumption (supply 12 V DC)
  37 mA
• Max. current consumption (supply 24 V DC)
  40 mA
• Supply voltage (± 10%)
  12…24 V DC
