Cameras, DAHUA Systems, IP Video Surveillance
IPC-HDBW3649E-AS-IL-0280B 6MP Smart Dual Light Dome Camera
MPN: IPC-HDBW3649E-AS-IL-0280B
If in stock, ship in 1-2 days
130.41 € excl. VAT

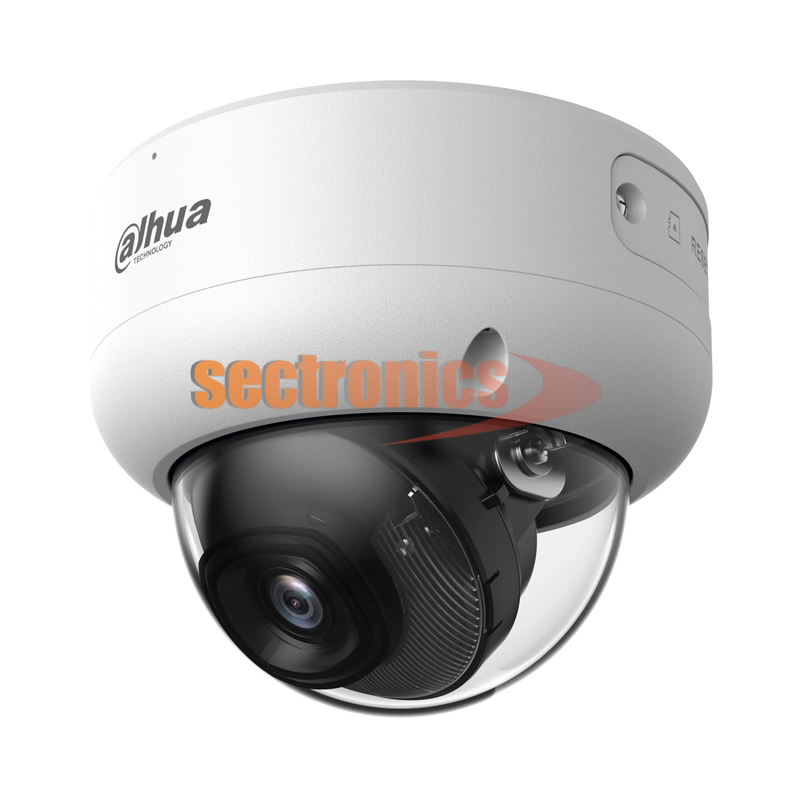

Dahua IPC-HDBW3649E-AS-IL-0280B 6MP Smart Dual Light WizSense Dome IP Camera
Features:
| Brand | Dahua |
| Model | IPC-HDBW3649E-AS-IL-0280B |
| Camera Type | WizSense Smart Dual Light Dome IP Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 6MP (3288 × 1850) |
| Maximum Frame Rate | 25/30 fps at 6MP |
| Minimum Illumination | 0.005 lux (Color) / 0.0005 lux (B/W) |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Maximum Aperture | F1.4 |
| Horizontal Viewing Angle | 110° |
| Vertical Viewing Angle | 58° |
| Diagonal Viewing Angle | 132° |
| Night Vision Technology | Smart Dual Light |
| Infrared Illumination Distance | Up to 30m |
| Warm Light Illumination Distance | Up to 30m |
| IR LEDs | 3 |
| Warm Light LEDs | 4 |
| Day/Night Function | Auto ICR / Color / B&W |
| Wide Dynamic Range | 120dB True WDR |
| Noise Reduction | 3D NR |
| Backlight Compensation | BLC / HLC |
| Video Compression | H.265, H.264, MJPEG (Sub-stream) |
| Smart Compression | Smart H.265+ / Smart H.264+ |
| AI Coding | Super AI Coding (H.265 / H.264) |
| Video Streams | Triple Stream |
| AI Technology | Dahua WizSense |
| Perimeter Protection | Intrusion, Tripwire, Stay and Loitering Detection |
| Object Classification | Human and Vehicle |
| Smart Motion Detection | SMD 4.0 |
| Intelligent Search | AcuPick (with compatible equipment) |
| Scene Optimization | AI SSA |
| Face Detection | Supported |
| Motion Detection | Supported |
| Built-in Microphone | Yes |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Audio Input / Output | 1 / 1 |
| Alarm Input / Output | 1 / 1 |
| Local Storage | MicroSD Card up to 512GB |
| Additional Storage | NAS / FTP / SFTP |
| Network Interface | RJ45 10/100 Mbps Ethernet |
| Network Protocols | IPv4, IPv6, HTTP, RTSP, TCP, UDP, DHCP, DNS, NTP and others |
| ONVIF Compatibility | Profiles S, G, T and M |
| Remote Monitoring | DMSS / Smart PSS Lite / DSS |
| Power Supply | 12V DC / PoE (802.3af) |
| Maximum Power Consumption | 6.4W (12V DC) / 7.5W (PoE) |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Metal |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH (Non-condensing) |
| Dimensions | Ø111.7 × 89.1mm |
| Net Weight | Approximately 528g |
| Installation | Ceiling / Wall Mounting with Suitable Bracket |
| Focal Lenght | 2.8mm |
|---|---|
| Intelligent Functions | WizSense, AcuPick |
| Max Resolution | 6MP |
| Type | Dome |
