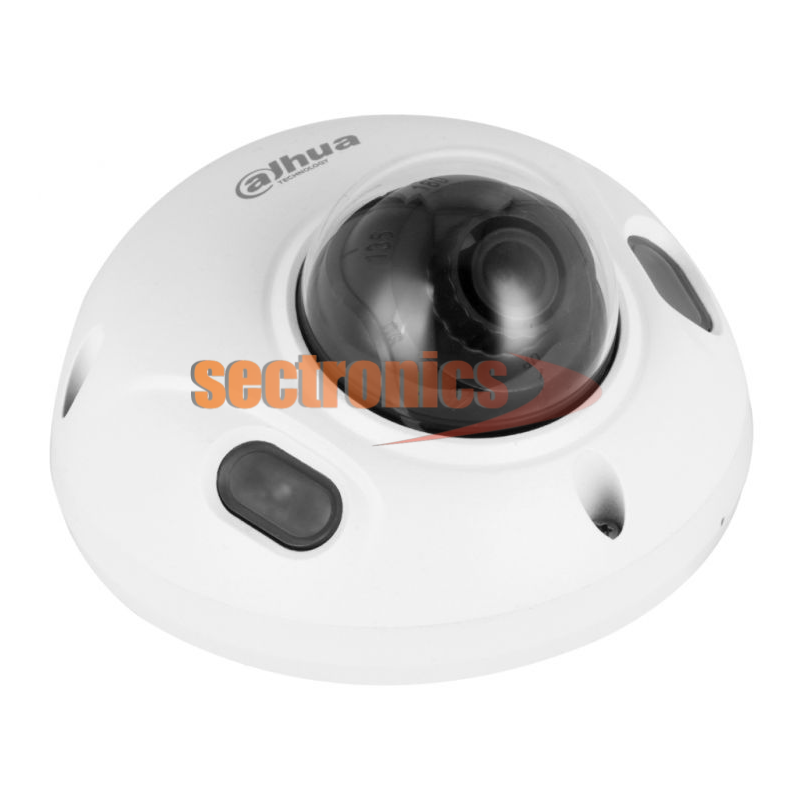

IPC-HDBW3541F-AS-0280B-S2 5MP WizSense Dome Camera
MPN: IPC-HDBW3541F-AS-0280B-S2
If in stock, ship in 1-2 days
111.26 € excl. VAT
Dahua IPC-HDBW3541F-AS-0280B-S2 5MP WizSense IR Dome IP Camera
Features:
| Brand | Dahua |
| Model | IPC-HDBW3541F-AS-0280B-S2 |
| Camera Type | WizSense IR Fixed-Focal Dome IP Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 5MP (2960 × 1668) |
| Maximum Frame Rate | 20 fps at 5MP / 25–30 fps at 4MP |
| Minimum Illumination | 0.005 lux (Color) / 0.0005 lux (B/W) |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Maximum Aperture | F1.4 |
| Horizontal Viewing Angle | 111° |
| Vertical Viewing Angle | 58° |
| Diagonal Viewing Angle | 132° |
| Night Vision Technology | Infrared (IR) |
| IR Illumination Distance | Up to 30m |
| IR LEDs | 2 |
| Day/Night Function | Auto ICR / Color / B&W |
| Wide Dynamic Range | 120dB True WDR |
| Noise Reduction | 3D NR |
| Backlight Compensation | BLC / HLC |
| Video Compression | H.265, H.264, MJPEG (Sub-stream) |
| Smart Compression | Smart H.265+ / Smart H.264+ |
| AI Coding | AI H.265 / AI H.264 |
| Video Streams | Triple Stream |
| AI Technology | Dahua WizSense |
| Perimeter Protection | Intrusion / Tripwire Detection |
| Object Classification | Human and Vehicle |
| Intelligent Search | Quick Pick (with compatible AI NVR) |
| Smart Motion Detection | SMD |
| Built-in Microphone | Yes |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, G.723 |
| Audio Input / Output | 1 / 1 |
| Alarm Input / Output | 1 / 1 |
| Local Storage | MicroSD Card up to 256GB |
| Additional Storage | NAS / FTP / SFTP |
| Network Interface | RJ45 10/100 Mbps Ethernet |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, TCP, UDP, DHCP and others |
| ONVIF Compatibility | Profiles S, G and T |
| Remote Monitoring | DMSS / Smart PSS / DSS |
| Power Supply | 12V DC / PoE (802.3af) |
| Maximum Power Consumption | 5.9W (12V DC) / 7.2W (PoE) |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing Material | Metal |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | Ø111 × 64.8mm |
| Net Weight | 423g |
| Installation | Ceiling / Wall Mounting with Suitable Bracket |
| Focal Lenght | 2.8mm |
|---|---|
| Intelligent Functions | WizSense |
| Max Resolution | 5MP |
| Type | Dome |
