Detectors, SATEL Security Solutions

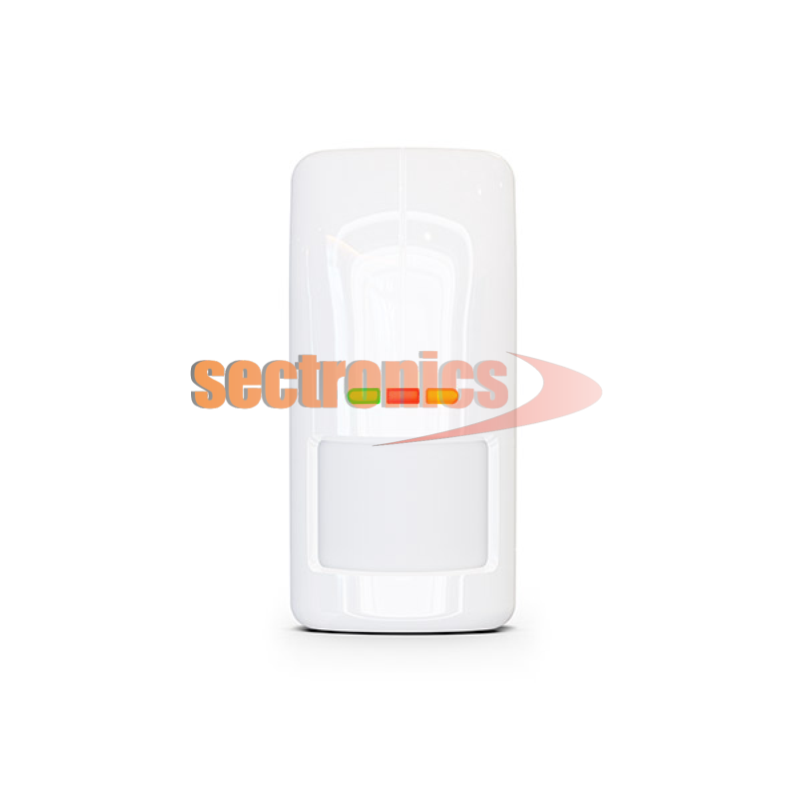

OPAL Outdoor PIR + MW Dual Technology Motion Detector
MPN: OPAL
If in stock, ship in 1-2 days
49.40 € excl. VAT
OPAL Outdoor PIR + MW Dual Technology Motion Detector
Features:
| Microwave frequency | 24 GHz |
| D/N dusk sensor output (OC-type output) | 50 mA / 12 V DC |
| Relay contact resistance (anti-masking output) | 34 Ω |
| Relay contact resistance (alarm output) | 34 Ω |
| Anti-masking outputs (NC relay, resistive load) | 40 mA / 24 V DC |
| Tamper outputs (NC) | 100 mA / 30 V DC |
| Alarm outputs (NC relay, resistive load) | 40 mA / 24 V DC |
| Detector weight (without bracket) | 176 g |
| IP code | IP54 |
| Warm-up period | 40 s |
| Security grade according to EN50131-2-4 | Grade 2 |
| Supply voltage | 12 V DC |
| Complied with standards | EN50131-1, EN 50131-2-4, EN50130-4, EN50130-5 |
| Alarm signaling time | 2 s |
| Environmental class according to EN50130-5 | IIIa |
| Dimensions | 65 x 138 x 58 mm |
| Maximum humidity | 93±3% |
| Max. current consumption | 20 mA |
| Standby mode current consumption | 15 mA |
| Recommended mounting height | 2,4 m |
| Operating temperature range | -40…+55 °C |
| Detected target velocity | 0,3…3 m/s |
For more information: OPAL
