SATEL Security Solutions, Wireless Systems

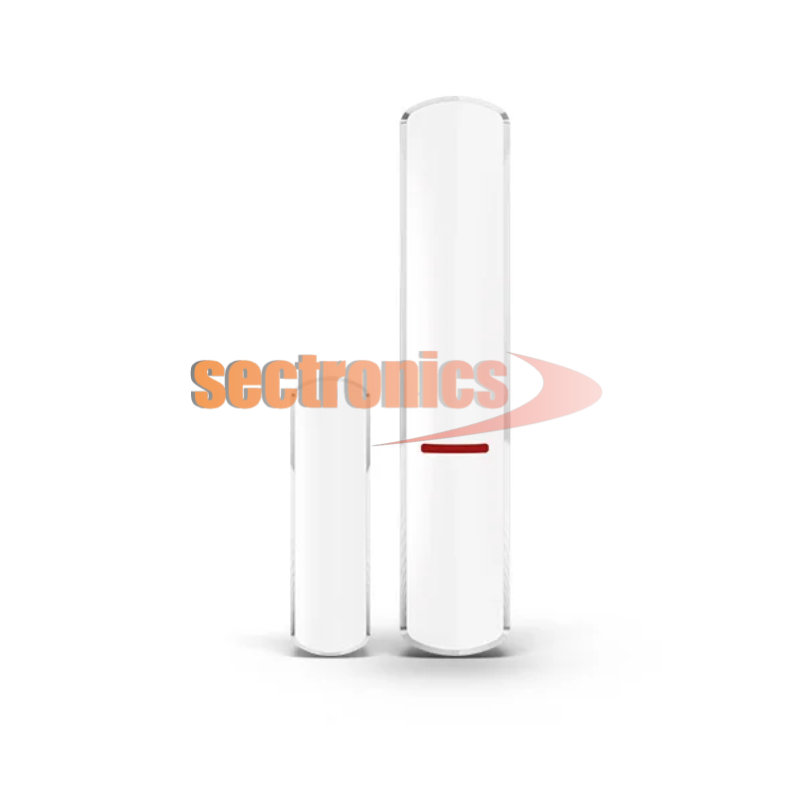

AXD-200 Wireless Multipurpose Detector
MPN: AXD-200
If in stock, ship in 1-2 days
44.65 € excl. VAT
AXD-200 Wireless Multipurpose Detector
Features:
| Temperature measurement accuracy | ±1°C |
| M1 input sensitivity (NC) | 240 ms |
| Maximum gap – recessed magnet (magnetic contact) | 18 mm |
| Maximum gap – surface magnet (magnetic contact) | 20 mm |
| Shock detection range (depending on the type of mounting surface) | up to 3 m |
| Magnet pad dimensions – recessed mounting | ø10 x 28 mm |
| Magnet pad dimensions – surface mounting | 15 x 52 x 6 mm |
| Magnet enclosure dimensions – surface mounting | 15 x 52 x 6 mm |
| Temperature measurement range | -10°C…+55°C |
| Radio communication range (in open area) for ACU-280 | up to 1200 m |
| Radio communication range (in open area) for ACU-220 | up to 2000 m |
| Radio communication range (in open area) for ACU-270 | up to 500 m |
| Radio communication range (in open area) for ACU-120 | up to 500 m |
| Battery working time (in years) | up to 2 |
| Security grade according to EN50131-2-6 | Grade 2 |
| Complied with standards | EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6, EN 50131-5-3 |
| Detector enclosure dimensions | 20 x 102 x 23 mm |
| Environmental class according to EN50130-5 | II |
| Standby current consumption | 55 µA |
| Battery | CR123A 3V |
| Operating frequency band | 868,0 ÷ 868,6 MHz |
| Maximum humidity | 93±3% |
| Weight | 59 g |
| Max. current consumption | 7 mA |
| Operating temperature range | -10°C…+55°C |

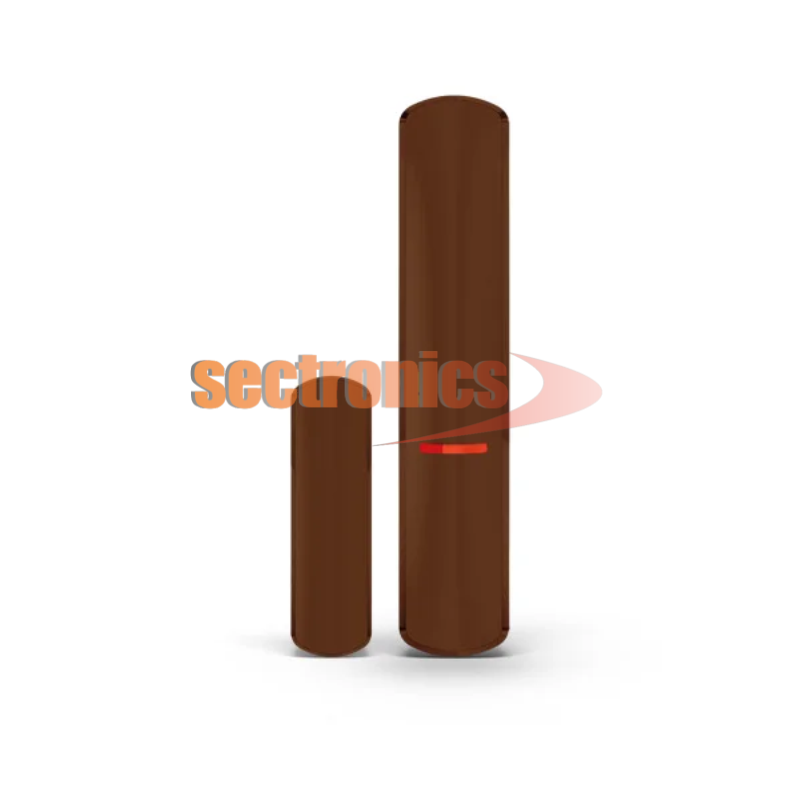

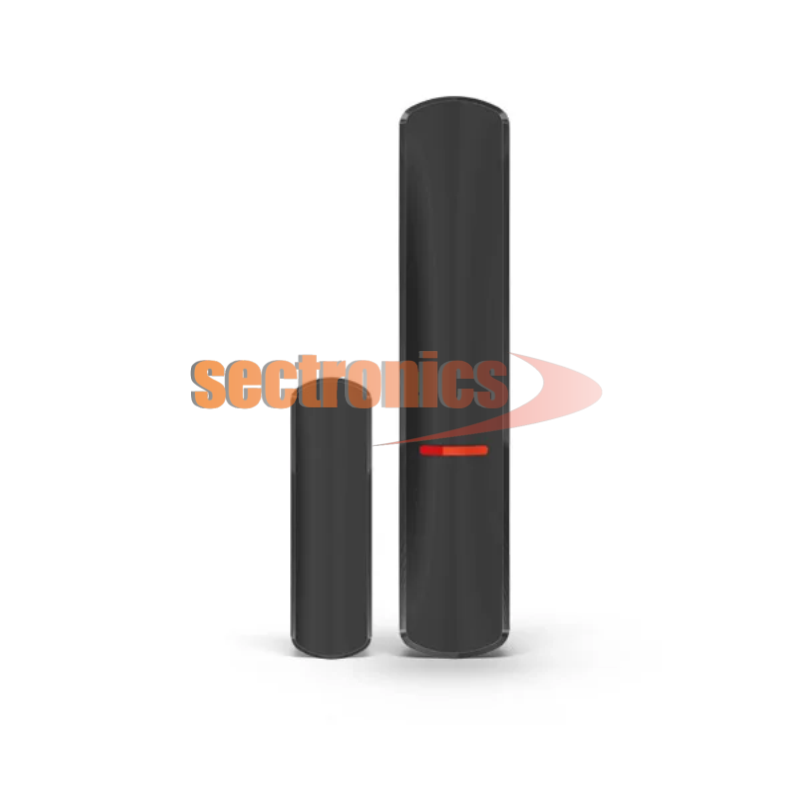

For more information: AXD-200 DG; AXD-200 BR; AXD-200
| Color | Dark Grey, Brown, White |
|---|
