SATEL Security Solutions, Wireless Systems

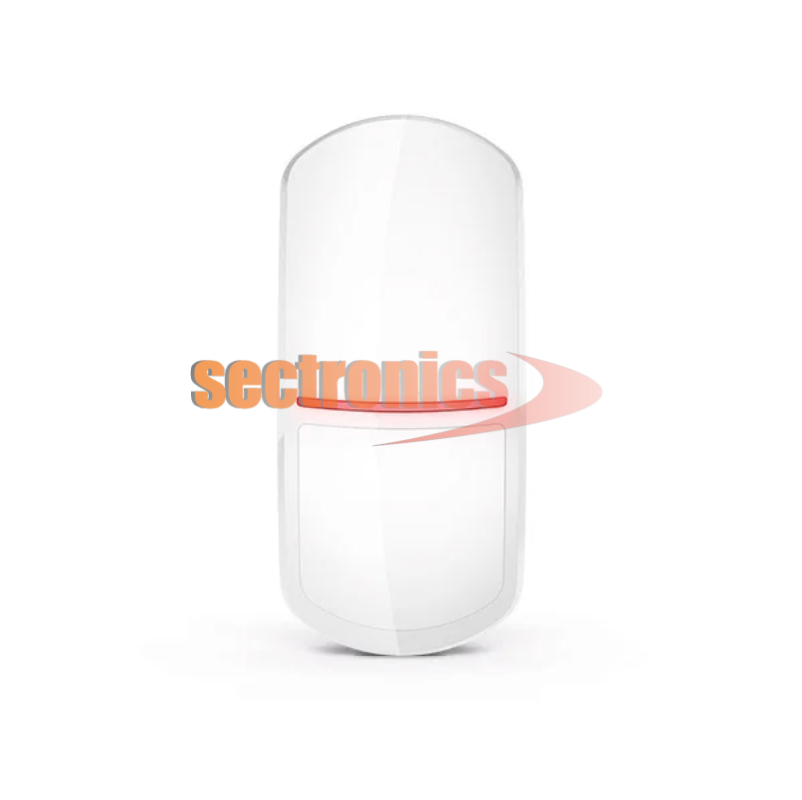

APMD-250 Wireless Dual-Tech Motion Detector
MPN: APMD-250
If in stock, ship in 1-2 days
64.60 € excl. VAT
APMD-250 Wireless Dual-Tech Motion Detector
Features:
| Environmental class according to EN50130-5 | II |
| Maximum detection area | 15 m x 24 m, 90° |
| Security grade according to EN50131-2-4 (detector mounted directly to the wall) | Grade 2 |
| Temperature measurement range | -10°C…+55°C |
| Radio communication range (in open area) for ACU-280 | up to 1600 m |
| Radio communication range (in open area) for ACU-220 | up to 2000 m |
| Radio communication range (in open area) for ACU-270 | up to 500 m |
| Radio communication range (in open area) for ACU-120 | up to 500 m |
| Warm-up period | 40 s |
| Microwave frequency | 24,125 GHz |
| Temperature measurement accuracy | ±1°C |
| Complied with standards | EN50131-1, EN50130-4, EN50130-5 |
| Battery working time (in years) | up to 2 |
| Dimensions | 62 x 137 x 42 mm |
| Standby current consumption | 75 µA |
| Battery | CR123A 3V |
| Operating frequency band | 868,0 ÷ 868,6 MHz |
| Maximum humidity | 93±3% |
| Weight | 152 g |
| Max. current consumption | 13 mA |
| Recommended mounting height | 2…2,4 m |
| Operating temperature range | -10°C…+55°C |
| Detected target velocity | 0,3…3 m/s |
For more information: APMD-250
