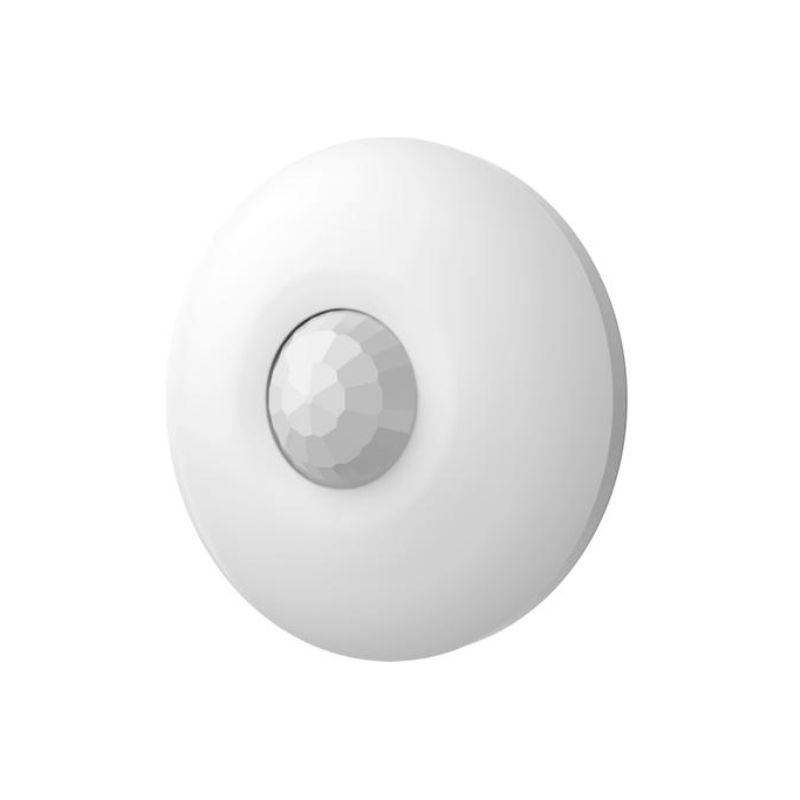

DS-PDCL12-EG2-WE Wireless PIR Ceiling Detector

DS-PDCL12-EG2-WE Wireless PIR Ceiling Detector

  • Detection Range: 12m / 360°
  • SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

32.56  excl. VAT

Hikvision DS-PDCL12-EG2-WE Wireless PIR Ceiling Detector

Detection Performance
Detection Method Passive Infrared
Detection Range 12m
Detection Angle 360°
Detection Zones 172
Detectable Speed 0.3~2m/s
Sensitivity Auto;Low
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front;Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power Up Enrolling
LED Indicator Blue(Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6Km
Frequency Hopping Support
Enrolling Method Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A × 1
Typical Voltage 3V
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD) φ101.2 mm x 32.9 mm
Weight 109.5g
Mounting Height 2.4 to 4m
Mounting Method Ceiling
Application Scenario Indoor
